Creating private services on NixOS using Tailscale and Caddy

Tailscale is a mesh VPN that makes it dead simple to connect almost any device together in a private network. Caddy is a web server that focuses on ease of use and automatic HTTPS. I am a fan of both of these, and I was very excited to discover that Tailscale has an experimental integration with Caddy that leverages their tsnet library to allow creating unique Tailscale addresses for individual virtual hosts in your Caddy configuration. Here’s a quick run down of how to set this up on NixOS.

Installing caddy-tailscale for NixOS

As of the latest NixOS release, the Caddy package in nixpkgs supports including plugins directly which greatly simplifies this step. As an example, here’s how I include the caddy-tailscale plugin with the excellent caddy-defender that lets me drop traffic from AI scrapers more safely.

You can also keep the package definition in a separate file like this, and use this script to keep it up-to-date. DISCLAIMER: The script was vibe coded by Claude, all I’ve done is checked it for obviously silly shit.

   services.caddy = {
     enable = true;
+    package =
+      pkgs.caddy.withPlugins {
+        plugins = [
+          "github.com/jasonlovesdoggo/caddy-defender@v0.8.5"
+          "github.com/tailscale/caddy-tailscale@v0.0.0-20250207163903-69a970c84556"
+        ];
+        hash = "sha256-z+zj3rfXbyxldRjO1yoLD77ACRWEAofzMDiZe/bHAqw=";
+     }
     globalConfig = ''
       servers {

This will swap out the caddy binary in your NixOS configuration with one that has the caddy-tailscale module patched in. You will also need to provide a Tailscale authkey to allow the caddy-tailscale module to interact with the Tailscale API and provision new nodes in your Tailnet. This can be done by setting the TS_AUTHKEY environment variable in your Caddy service configuration. Here’s an example of how to do so using sops-nix:

sops.secrets.services-tsauthkey-env = {
  sopsFile = ./secrets/tailscale.env;
  owner = config.services.caddy.user;
  format = "dotenv";
};
services.caddy.environmentFile = config.sops.secrets.services-tsauthkey-env.path;

Create the secrets/tailscale.env file with sops, the contents should look something like this:

TS_AUTHKEY=tskey-auth-something-something

Setting up your first private service

Now we’re ready to rumble. To showcase the full capabilities of caddy-tailscale, we’re going to set up Grafana with proxy authentication and let Tailscale handle the authentication for us. Here’s a simple example (N.B. $TAILNET_NAME should be replaced with your Tailscale network name.):

services.caddy.virtualHosts = {
  "https://${config.services.grafana.settings.server.domain}" = {
    extraConfig = ''
      # This will create a new node at grafana.$TAILNET_NAME.ts.net
      bind tailscale/grafana
      # Enables the Tailscale authentication provider
      tailscale_auth
      # Forwards your Tailscale user ID to Grafana. Usually your email address.
      reverse_proxy ${config.services.grafana.settings.server.http_addr}:${toString config.services.grafana.settings.server.http_port} {
        header_up X-Webauth-User {http.auth.user.tailscale_user}
      }
    '';
  };
};

services.grafana = {
  enable = true;
  settings = {
    "auth.proxy" = {
      # Enable proxy-based authentication
      enabled = true;
      # Automatically create new accounts for people who access the service
      auto_sign_up = true;
      # Do not store login cookies, instead always relying on proxy authentication
      enable_login_token = false;
    };
    server = {
      domain = "grafana.$TAILNET_NAME.ts.net";
      http_addr = "127.0.0.1";
      http_port = 2342;
    };
  };
};

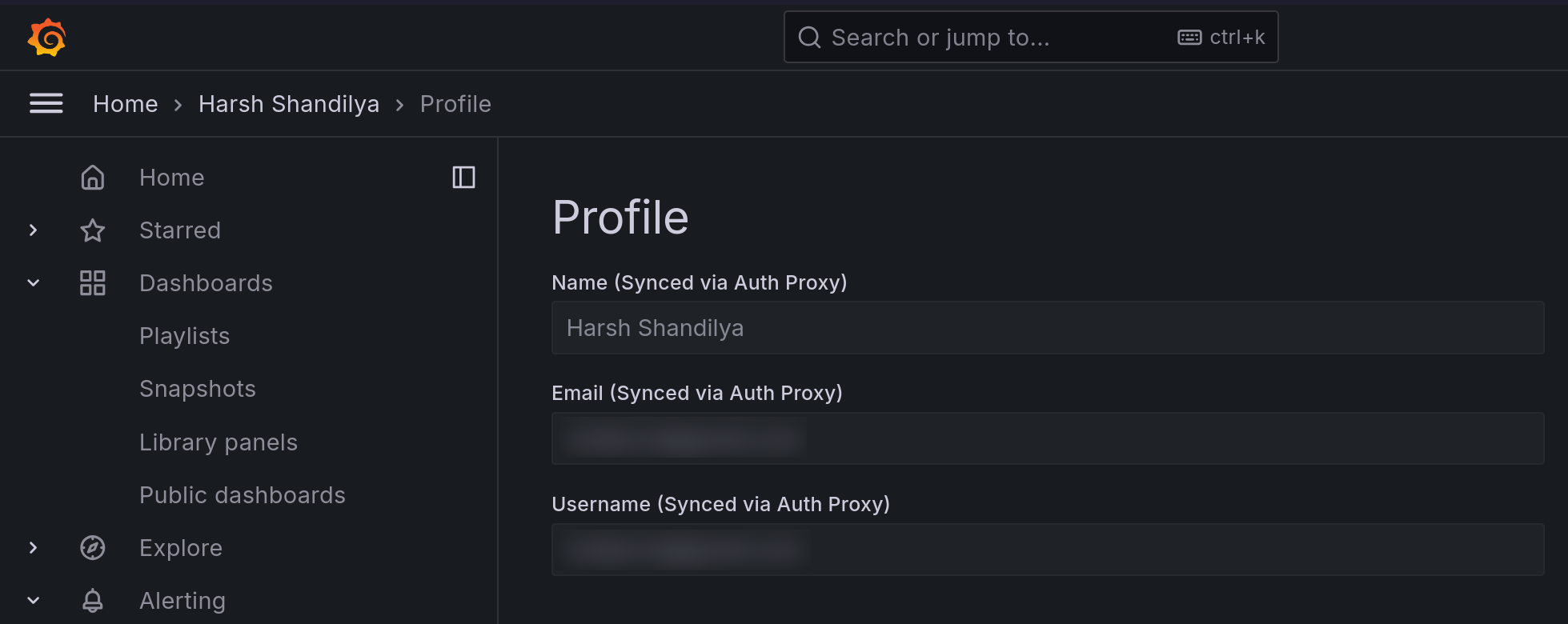

This configuration will set up a new Grafana instance at https://grafana.$TAILNET_NAME.ts.net that is only accessible to members of your Tailscale network. When you visit the URL, your Tailscale identity will be used to log you into your existing Grafana account, or sign you up if this is your first time visiting the service.

Caveats

While this approach works great for most needs, there are a few caveats to be aware of:

• Each service created this way registers as a new device in your Tailnet. Make sure to remain aware of the devices limit on your account.
• Since each “virtual” device being created via this is technically backed by your physical machine, the “Services” tab in your Tailscale dashboard will end up with duplicate entries of services that are running on the same machine. For example, I run 5 caddy-tailscale services on my server, which results in 6 entries of the SSH service being listed. This may be a deal breaker to you, depending on how you use the Tailscale dashboard.

Conclusion

Despite its experimental status, caddy-tailscale is pretty powerful and exposes enough functionality to cover most basic use cases. I’ve been pretty happy running it in my homelab for the past couple months and I’m excited to see how it evolves in the future. If you have any questions or corrections, please let me know either in the comments below or on Mastodon.
